Quick Details

  • Place of Origin: United States
  • Brand Name: Rohde&Schwarz
  • Model Number: ZVB4
  • condition: used

Packaging & Delivery

Delivery Detail: seven days

Specifications

Rohde&Schwarz ZVB4
1. Dynamic range better than 123 dB (typ. 130 dB)
2.Power sweep range >50 dB
3.High speed

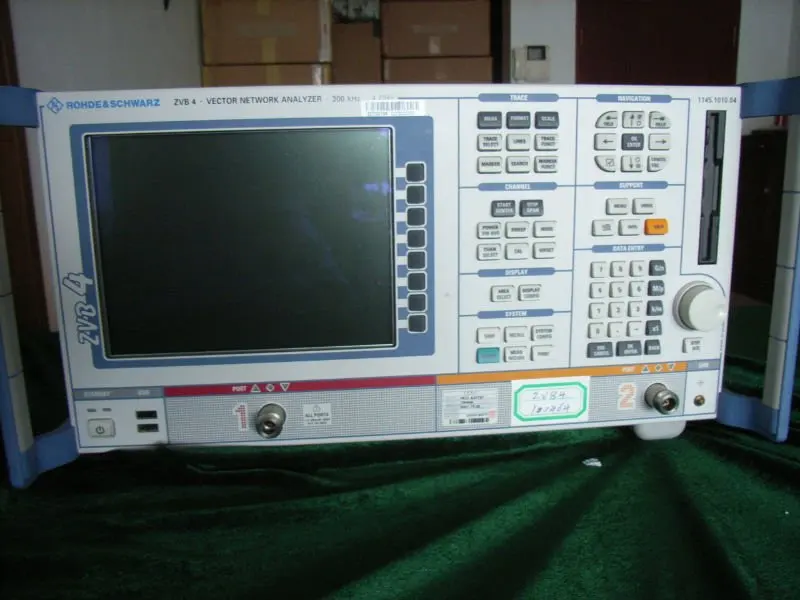

Rohde&Schwarz ZVB4 Vector Network Analyzer 300kHz-4GHz

      The R&S®ZVB series of vector network analyzers covers the frequency ranges from 300 kHz to 4/8 GHz and from 10 MHz to 14/20 GHz. It has been designed for universal measurements on passive and active components. The R&S®ZVB series greatly simplifies vector network analysis especially for multiport measurements and measurements on balanced devices. Featuring comprehensive measurement functions, excellent specifications, high measurement and data transfer speeds and remote-control capability, the analyzers of the R&S®ZVB series are an ideal choice for both development and production applications. The compact versions of the 14 GHz and 20 GHz two-port models leave ample room for test setups in the lab, featuring a height of only 24 cm and a depth of 42 cm.

New multiport concept
     Instruments with two or four test ports – for multiport and balanced measurements
     wo internal sources (four-port models) – to provide RF and LO signals for mixer measurements by means of a single unit
     Capability to perform balanced measurements – to characterize balanced DUTs by their mixed mode S-parameters
    Optional automatic calibration units – to speed up calibration and avoid operator errors
Outstanding specifications
     60001 points per trace
     Dynamic range better than 123 dB (typ. 130 dB)
     Power sweep range >50 dB
High speed
     Measurement time < 4.5 ms for 201 test points (frequency sweep)
     Switching time between channels < 1 ms
     Switching time between instrument setups < 10 ms
     Data transfer time < 0.7 ms (201 test points via RSIB)
     Simultaneous measurement of more than one DUT
Modern user interface
     Intuitive Windows-based operation via mouse
     Operation by means of hardkeys and softkeys
     Large number of channels, traces and setups that can be loaded simultaneously
